Support for Model: RP25/D

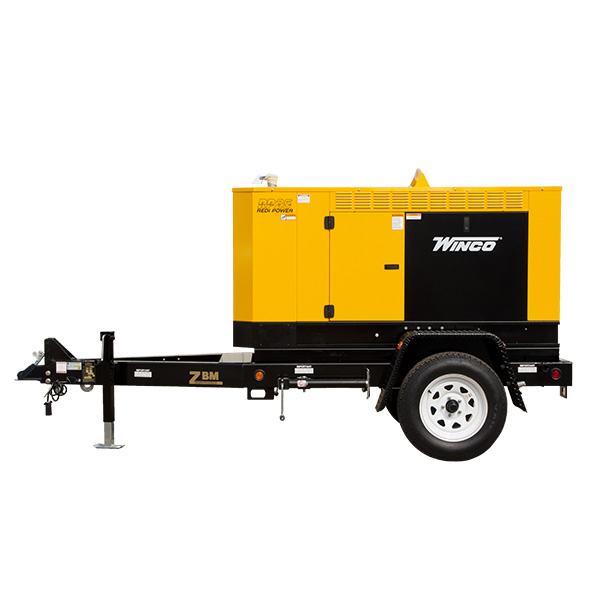

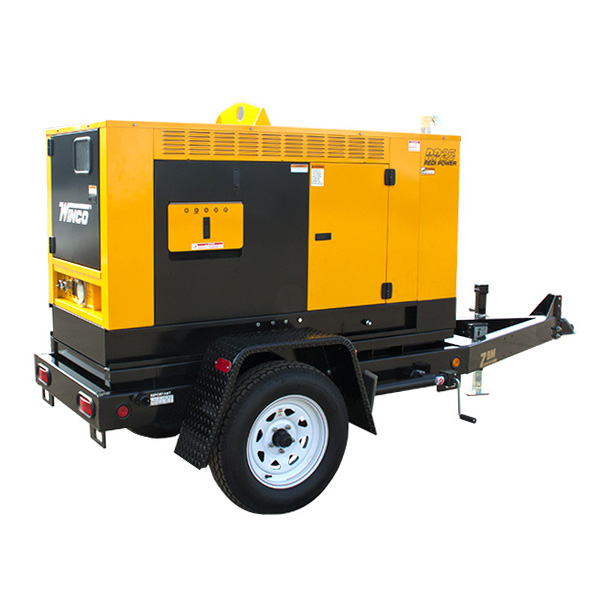

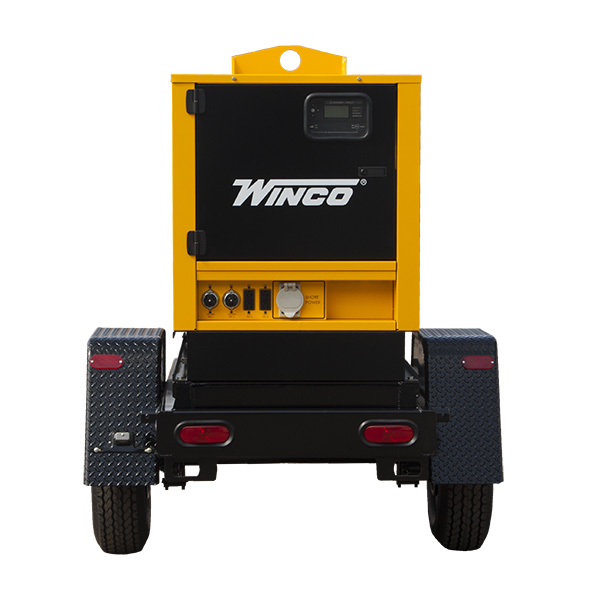

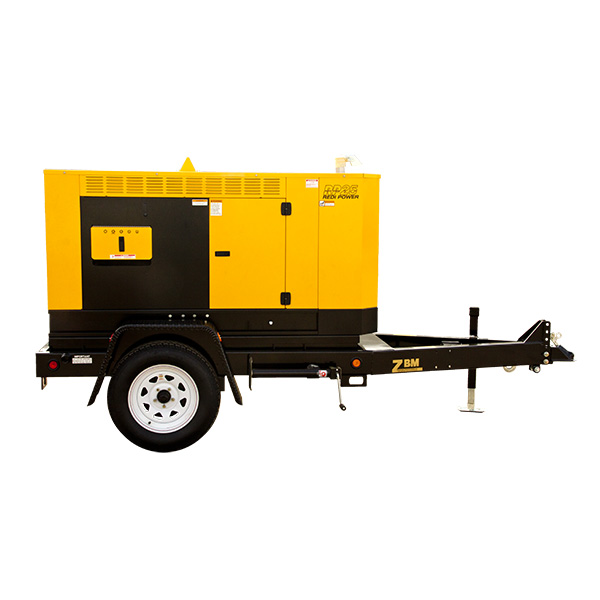

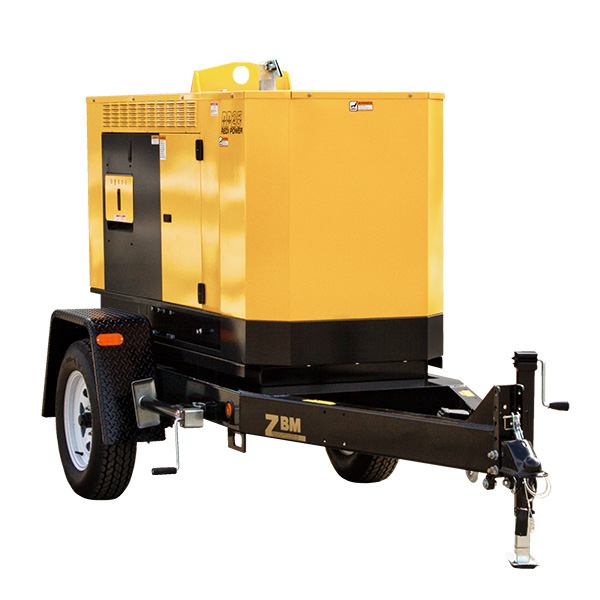

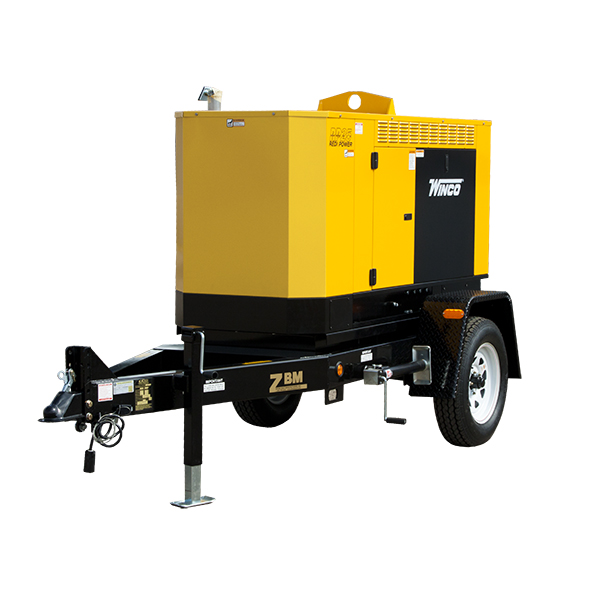

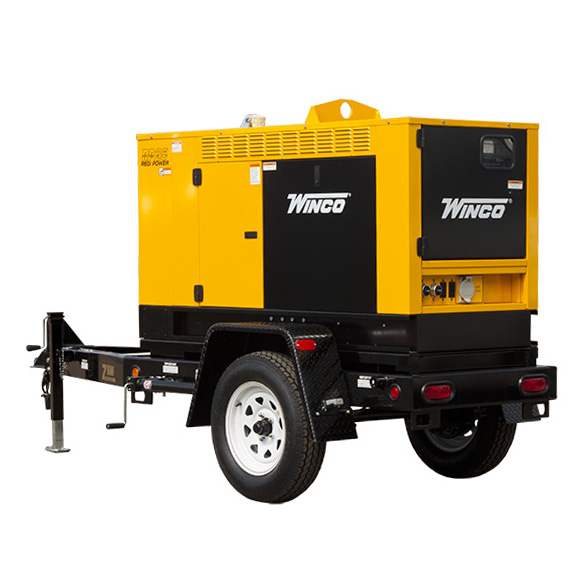

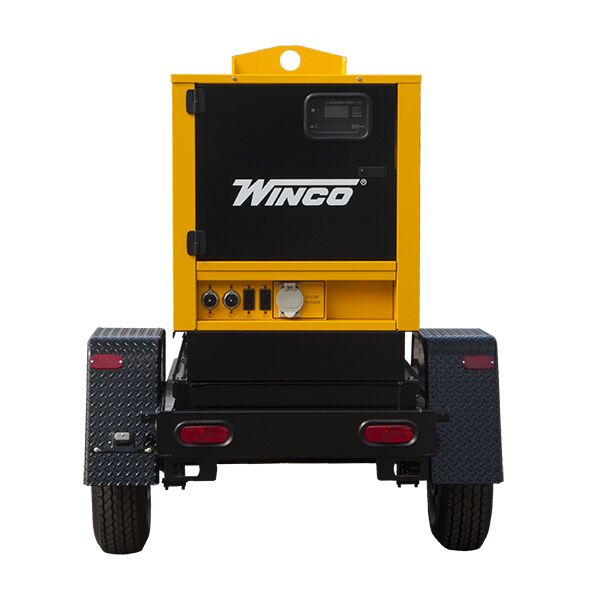

The RP25 is not your average 25KVA mobile unit. It comes standard with all the normal goodies (Izuzu 2.2L engine, Stamford generator, Deep Sea controller, Cam-Locks, etc.) but our RP25 has two unique features. The first is that the voltage selector is 4-position, meaning it can produce the four most common voltages used in the US. Also, we oversized the generator end so our output on single phase is higher than other comparable models. We think that higher output will come in handy.

SKU: 99925-004 Categories: ,

Product Features

Isuzu Engine
     Engines that are engineered to power equipment
     that works for a living.
Switchable Voltage
     4-Position voltage selector switch with safety shutdowns
     and lockout.
Shore Power Inlet
     Connection for the block heater and battery charger.
Cam-Lock Receptacle
     Full power terminal block. Cam-locks are included.
Powder Coat Paint
     For an incredibly strong finish.
Dual Circuit Breakers
     For high and low voltage over-current protection.
DSE7310 MKII Controller
     Digital controller provides performance information and safety shutdowns.
100% Load Tested
     We load test every generator before it leaves our factory.

Additional Information


120/240 1-Ph: 19700
120/208 3-Ph: 20000
120/240 3-Ph: 20000
277/480 3-Ph: 20000


120/240 1-Ph: 70
120/208 3-Ph: 69
120/240 3-Ph: 60
277/480 3-Ph: 30

Voltage Output

120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase

Voltage Regulation

AVR (Automatic Voltage Regulator)

120/240V Receptacles

(2) NEMA 5-20 20A Duplex

240V Receptacles

(2) 50A twist lock

Engine Brand





CARB/California, EPA Prime


129" x 56.44" x 72.41"


2820 lbs.

Unit Warranty

1 yr/1000 hrs

Assembled In
