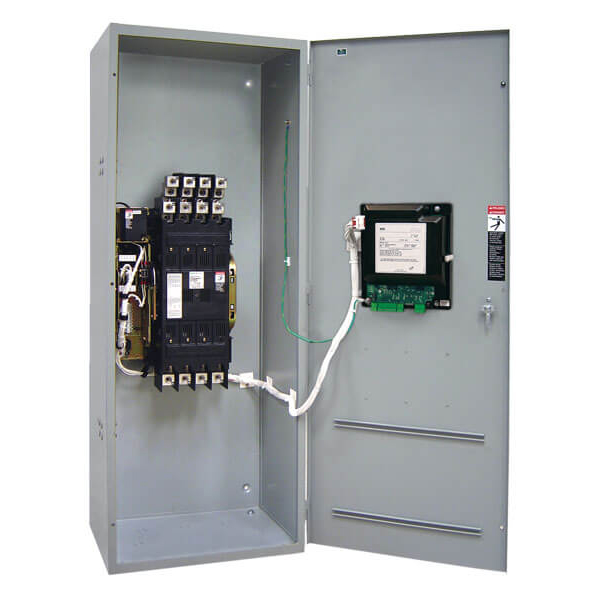

ASCO300 ATS 600 Amp SE Rated

$14,950.00

Loading...

Voltage* Required

Generator Voltage

Clear selection
Subtotal:

Poles* Required

Number of switched poles

Clear selection
Subtotal:

Enclosure* Required

Clear selection
Subtotal:

Deluxe Exerciser* Optional

Clear selection
Subtotal:

Strip Heater* Optional

Clear selection
Subtotal:

Relay Expansion Module* Optional

Clear selection
Subtotal:
Product Base Price:
$14,950.00
Add-Ons Option Total:
Component Options Total:
Order Total:

The add to cart button is disabled because the following component is not selected:

Product Features

Do you have installation questions? Click to read our Help Topics on Transfer Switches.


ASCO Automatic Transfer Switch Manufactured by Schneider Electric.
With an ATS you are protected 24 hours a day, seven days a week.
When the utility power fails, the ATS automatically starts the generator set and
transfers the load once the generator has reached proper voltage and
frequency. This happens in a matter of seconds after the power failure occurs.
As soon as the utility power has been restored, the ATS will automatically switch the load
back and, after a time delay, shut down the engine generator.
UL 1008
Listed to UL 1008 standard for total system loads for automatic transfer switches.
Meets NFPA 110
Meets NFPA 110 for Emergency and Standby Power Systems and the
National Electrical Code Articles 700, 701 and 702.
Service Entrance Rated
          Combines automatic power switching with disconnecting, grounding,
          and bonding required for use as service entrance equipment.
True Double-Throw Operation
The inherently inter-locked, single solenoid design prevents connections to both
sources at the same time.
Series 300 Group G Controller
Easy-to-navigate 128×64  LCD display with keypad provides LED indicators for switch
position, source availability, not in auto mode, and alert condition.
The controller also includes test and time delay bypass soft keys.
Withstand and Close-On Rating
Maximum of 50kA when used with circuit breakers.
Designed to Fit Anywhere
The ASCO Automatic Transfer Switch, 300 series line represents the most compact design
of automatic power transfer switches in the industry. With space in electrical closets being
at a premium, the use of wall or floor mounted ASCO Transfer Switches assure designers
optimum utilization of space. All transfer switches through 2000 amperes are designed to
be completely front accessible; permitting the enclosures to be installed flush against the
wall while allowing installation of all power cabling and connections from the front of the
switch. Additionally, cable entrance plates are also standard on the 1600 and 2000 amperes
units to install optional side-mounted pull boxes for additional cable bending space.
WP DataTables

Additional Information

Amperage

600 Amps

Voltage Output

115-600V

Frame

J

Current Limiting Fuses

480/600V 200kA

Dimensions (WxHxD)

NEMA 1: 38" x 91" x 28"
NEMA 3R: 41" x 95.5" x 33"
