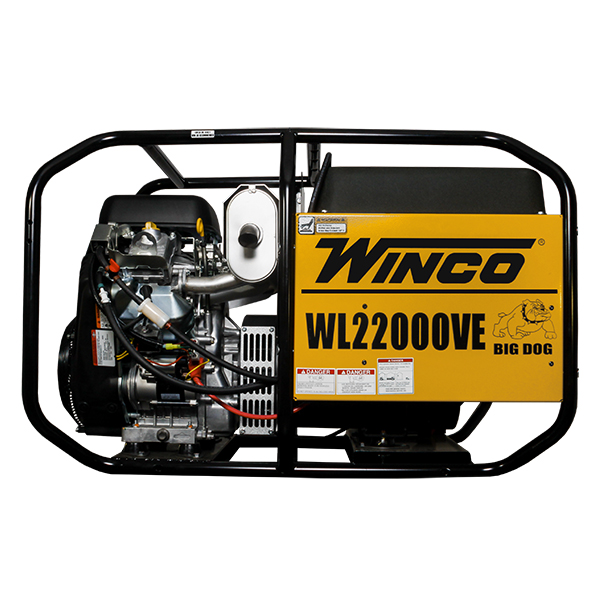

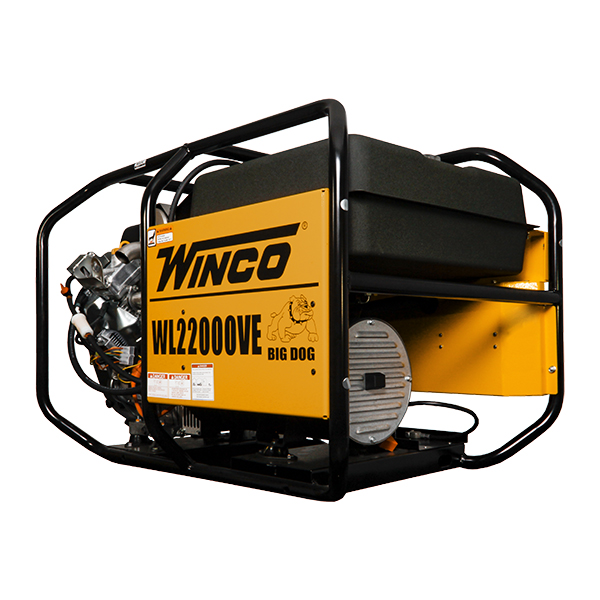

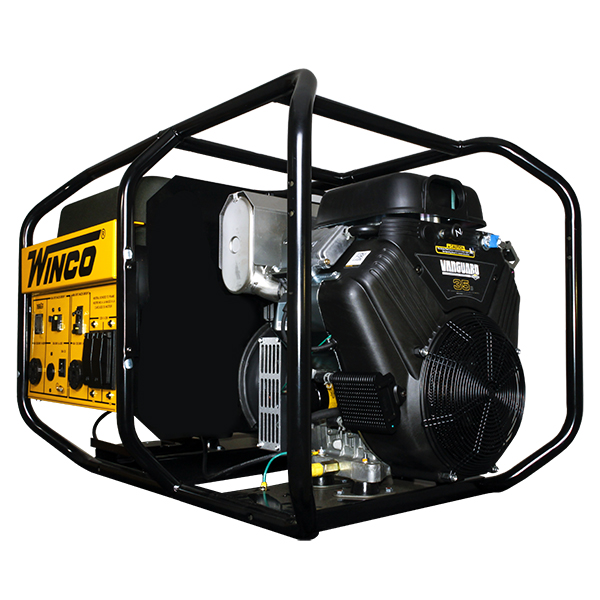

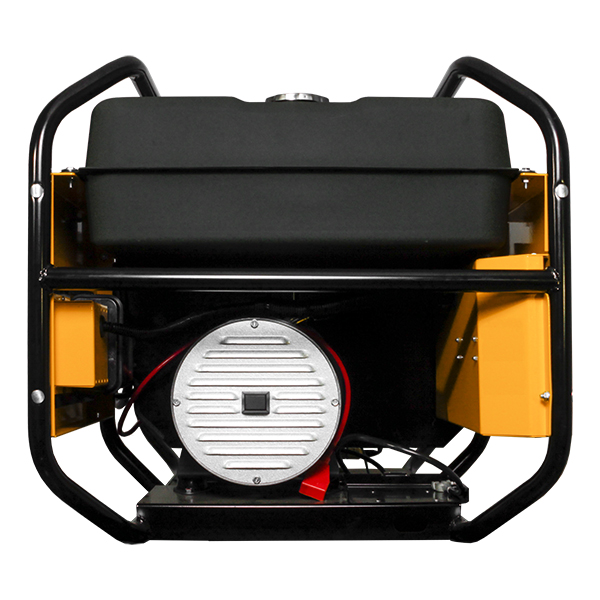

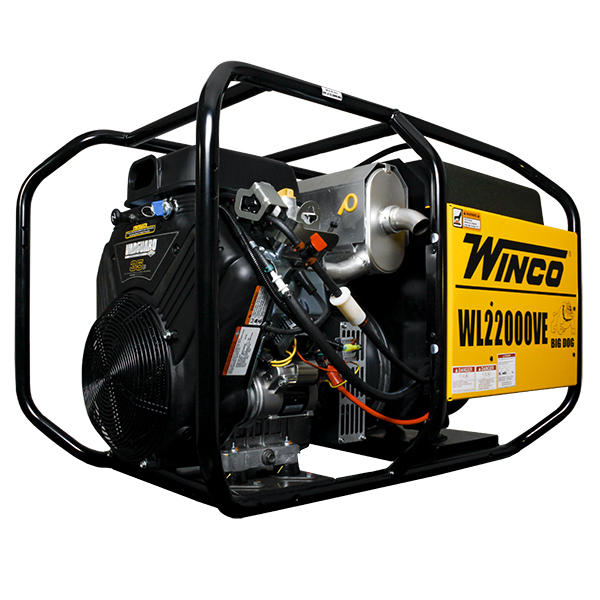

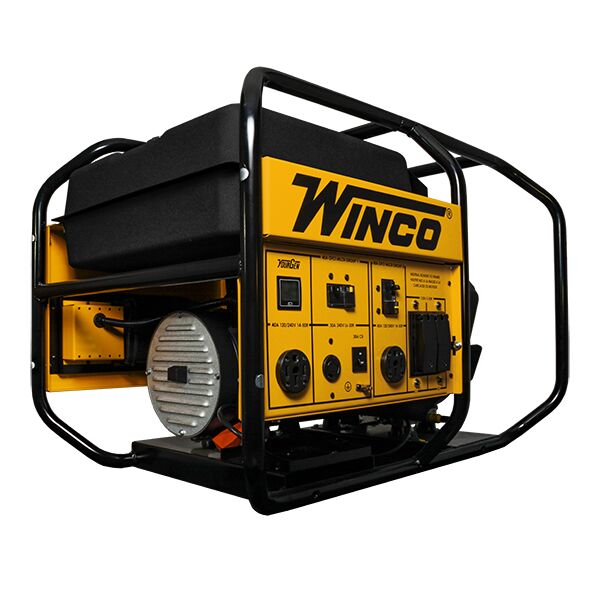

Support for Model WL22000VE/A
| General Information | ||
| Spec Sheet | Operators Manual | Load Balancing |
| Parts List | Tri-Fold Brochure | |
| Drawings | ||
| Outline Drawing | ||
| Engine | ||
| Operators Manual | Parts List | EPA Certificate |
| Vanguard Winterization | ||
| Generator | ||
| Operators Manual | AVR Manual | |
| Additional Information | ||
| Battery | Dolly Kit Installation Instructions |
Additional Information
| Starting Watts | 22,000 |
|---|---|
| Running Watts | 19,000 |
| Running Amps | 158.3/79.2 |
| Voltage Output | 120/240 Volt Single Phase |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |

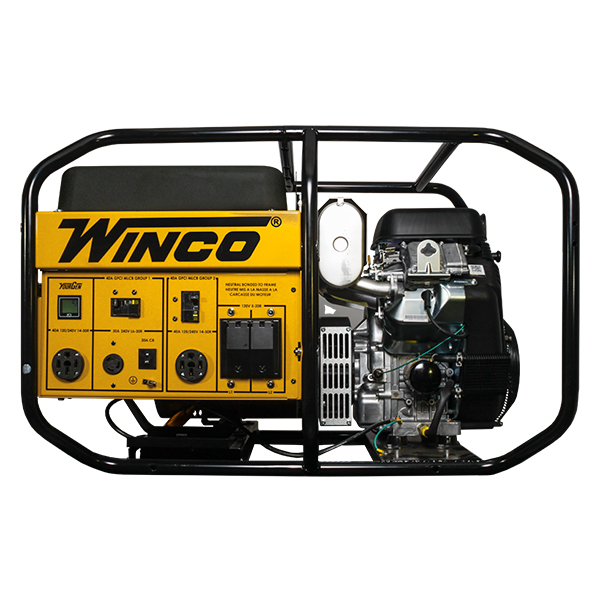

| 120V Receptacles | (4) NEMA 5-20 20A (GFCI) |
| 120/240V Receptacles | (2) NEMA L14-50R 50A (GFCI) |

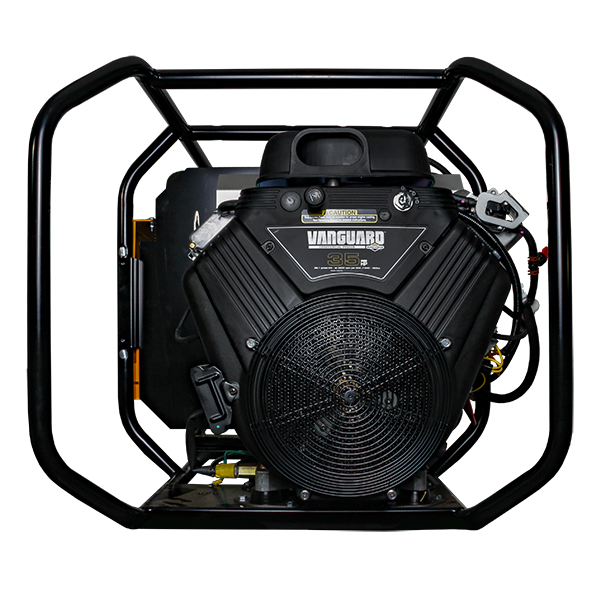

| Engine Brand | Briggs |
| Fuel | Gasoline |
| Emissions | EPA Prime |
| Dimensions | 43" x 28.85" x 28.85" |
| Weight | 504 lbs. |
| Unit Warranty | 3 Year Commercial |
| Assembled In | USA |
Question
Charles Schneider –
What is the fuel capacity on this unit? What would it’s run time be at 50% load?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Josie Krugerud –
Hello Charles,
The fuel consumption at 50% load is 1.88 gal/hr. It has a 15 gal fuel tank.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Doug Herrin –
IS optional Diesel engine available
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Josie Krugerud –
This unit is not available in diesel. The W6010KE is our only portable diesel. Depending on your application, we do have our DE prime diesel units available.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Moe –
Can the Winco WL22000VE be adapted to run on Natural Gas?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Josie Krugerud –
Hello, We do not have that option on this unit. If you are looking at after market devices, please contact our Technical Support Staff at 507-357-8334.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Joe Clary –
Can you use this generator for your home. With out hurting your computers
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Josie Krugerud –
Hi Joe, This would be safe to use.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
