I have a 45-25PT3J, Ser. # CC-871-107 and we recently had a power outage that required me to run the generator. When I did it did not produce any output. When I troubleshot the generator I noticed that when I removed the panel cover and engaged the pto the armature shaft was not turning at all, even at high rpm’s. Do you have any suggestions as to what the problem could be? Also, are there any companies in the Alexandria, La. area who could help me get it back up and running? My family has used this generator for many years, and we appreciate the quality of your product very much. Thanks for your help on this for me!
Hi Rick. It sounds like there is an issue in the gear case causing the armature not to spin. You can use our locator to find your closest Winco Service Dealer. Click on “Find an Expert” under the Service & Support tab of our website. Otherwise you can call our Service Department @ 507-357-6831.
Hello Thomas, The brush spring is part number G3422. The brush holder bracket part number is B61721. You can order these parts from our service department by calling 507-357-6831.
Jamie, I’m not sure what that bearing crosses to, however we have it in stock under a Winco 64562-000. Please call our parts department @ 507-357-8332 if you wish to order it.
Bob Ritter –
Need main 100 amp breaker
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Hi Bob. Please call our Service Department @ 507-357-6831 to order part 58805-004 if using single phase only. Order 82584-001 if using three phase.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Rick Markway –

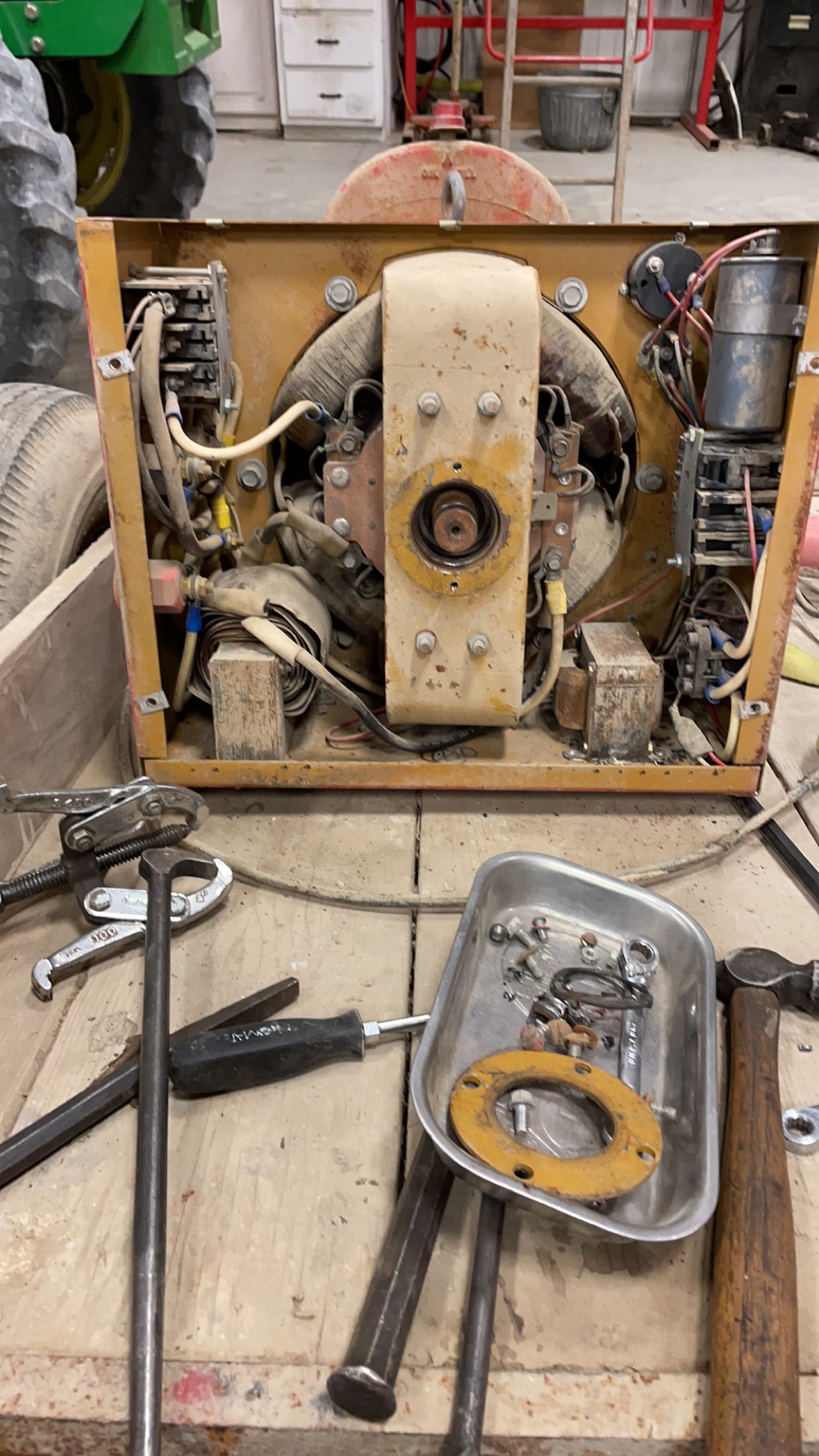

I have a 45-25PT3J, Ser. # CC-871-107 and we recently had a power outage that required me to run the generator. When I did it did not produce any output. When I troubleshot the generator I noticed that when I removed the panel cover and engaged the pto the armature shaft was not turning at all, even at high rpm’s. Do you have any suggestions as to what the problem could be? Also, are there any companies in the Alexandria, La. area who could help me get it back up and running? My family has used this generator for many years, and we appreciate the quality of your product very much. Thanks for your help on this for me!
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Hi Rick. It sounds like there is an issue in the gear case causing the armature not to spin. You can use our locator to find your closest Winco Service Dealer. Click on “Find an Expert” under the Service & Support tab of our website. Otherwise you can call our Service Department @ 507-357-6831.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Brad Kaup –
chain came off, mine did that, put the chain back on and the connector together.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
DAVE –
LOOKING FOR THE ELECTRICAL PINS TO CONECT TO THE POLE FOR A45-25 PT3J
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Hello Dave. You can buy them from Winco by calling our Service Department @ 507-357-6831.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Thomas –
I need a spring and holder to hold the brush against the ring
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Josie Krugerud –
Hello Thomas,
The brush spring is part number G3422. The brush holder bracket part number is B61721. You can order these parts from our service department by calling 507-357-6831.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Jamie Cox –
I am looking to cross reference the bearing 18, part number D8. Hopefully get a new bearing in it sometime soon. Thanks
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Jamie, I’m not sure what that bearing crosses to, however we have it in stock under a Winco 64562-000. Please call our parts department @ 507-357-8332 if you wish to order it.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Tyler Rapp –
I’m looking for the 50 amp breaker? Is it available or is there something to change it to?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Tyler, Please call our Parts Department @ 507-357-8332. 57030-000 is the 50A Circuit Breaker.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Brent –
I picked up an older Winpower 25/ 45 kw PTO generator are they neutral bonded?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Flag for removal
Dale Riebel –
Brent, yes there is a neutral to ground bond. See the wiring diagram in the parts list on this page.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
