HPS12000HE-03/A

MSRP $5,190.00

Loading...

Battery* Optional

Clear selection
Subtotal:

Maintenance Kit* Optional

Clear selection
Subtotal:

Generator Cover* Optional

Clear selection
Subtotal:

Low Pressure Fuel Solenoid* Optional

Clear selection
Subtotal:

30 Amp Plug* Optional

Clear selection
Subtotal:

60 Amp Plug* Optional

Clear selection
Subtotal:
Product Base Price:
$5,190.00
Add-Ons Option Total:
Component Options Total:
Order Total:

The add to cart button is disabled because the following component is not selected:

SKU: 16612-002 Categories: , , ,

Product Features

HPS12000HE-03/A
     This unit was built with versatility in mind. It is the only
     Tri-Fuel capable, Honda-powered generator on the market
     that DOES NOT void the engine warranty. It’s constructed
     with the same engine and generator end we use on our
     Industrial WL12000HE.
Honda GX630
     You expect the best, you get the best.The Honda GX630 is
     better than ever. Including improved adaptability,
     quieter operation, and greater fuel efficiency.
Tri-Fuel
     Designed to easily transition between three fuel sources:
     LP, Natural Gas, and Gasoline.
Low Oil Protection
     In the event there is low oil pressure, the engine will shut down,
     which will protect the engine from damage.
15 Gallon Fuel Tank
     The EPA approved steel fuel tank design eliminates
     hydrocarbon emissions.
Sturdy Wrap-Around Welded Tubular Cradle
     We use 14 gauge tubular steel for dependable durability.
Premium Circuit Breakers
     Providing clear and instant identification of a tripped circuit.
100% Load Tested
     You won’t find statistical sampling here. We load test every
     generator before it leaves our facility.

Additional Information

Starting Watts

12000

Running Watts

10800

Running Amps

90/45

Voltage Output

120/240 Volt Single Phase

Voltage Regulation

Capacitor

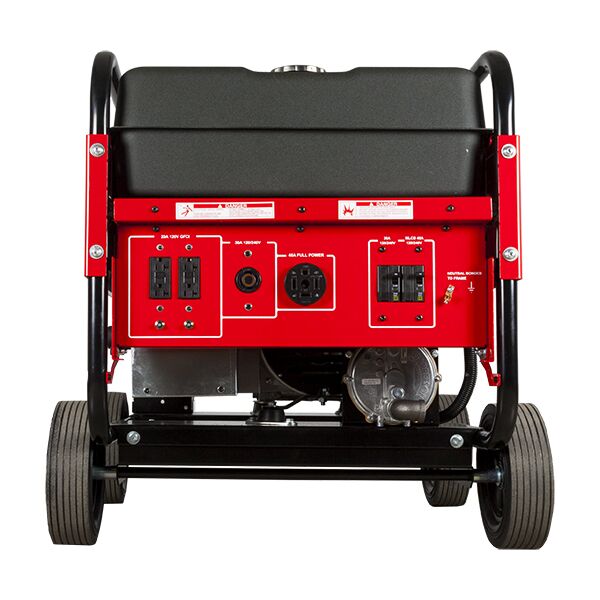

120V Receptacles

(2) NEMA 5-20R 20A (GFCI) Duplex

120/240V Receptacles

(1) NEMA L14-30 30A
(1) NEMA 14-60 60A

Engine Brand

Honda

Fuel

Gasoline, LP/NG

Emissions

EPA Prime

Dimensions

44.7" x 23" x 33"
With dolly kit installed

Weight

456 lbs.

Unit Warranty

2 Years Commercial

Assembled In

USA

Share your thoughts!

Let us know what you think...

What others are saying

  1. Greg

    Impressive!

    Greg

    Thanks for such an excellent product that provides great flexibility by running on three fuels. Build quality and materials are very good. I honestly wasn’t prepared for how big this unit was and once it was assembled I was impressed. Starts right up and I’ll be running on NG soon. I priced out standby gensets and decided for the amount of use, and how many items we would need to power, this was the best choice for us. Thank you!

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Question

    Danilo Tramontozzi

    how much does it weigh once is assembled?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      Hello Danilo, the assembled weight is about 430lbs.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Question

    Dennis Doyle

    How do a hook up a propane tank to it

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Dennis, pages 8 & 9 of your Winco operators manual covers vapor gas installation. Winco recommends “All fuel lines must be installed by a qualified fuel supplier.” If you have questions please call our technical support department @ 507-357-4334.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. Question

    Gary Sharp

    It was 116 degrees here the other day. What is the max temp and humidity the tri-fuel generators are rated for? Also for cold weather running are any special needs required when using propane? Can a ductless heat pump run on this genset directly through a transfer switch w/o power conditioning?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Gary, please contact our Technical Support Department @ 507-357-8334 or email Dan Curran [email protected].

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  5. Question

    Kent Martin

    What is the Difference between the HPS12000HE-03/A and the HPS12000HE?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Jason

      What is the total harmonic distortion (THD) for the tri-fuel generator?

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      The THD is less than 6%

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      Hello Kent, Both are the HPS12000HE model. the -03 tells us it is a single phase unit and the /A tells us what revision of our part number.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  6. Question

    marty holmen

    what does the hps stand for?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      Hello Marty,

      HPS stands for Home Power Systems, the name of the product line.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  7. Question

    Danilo Tramontozzi

    Can the 12000, running on NG, run a 5 ton central air unit.
    Also, how does one lift the unit to install the wheels

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Charlie

      What is the max size AC unit the HPS12000 can run? 3 or 4 ton?

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      A 5 ton air conditioner needs 12.5 kw to start. You would put the gen–set up on blocks to install the dolly kit or use a hoist to lift it. If you have more questions, you can contact our sales department at 507-357-6821.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  8. Question

    Danilo Tramontozzi

    What are the measurements of the unit once is out of the box? Does it come with the wheels assembled?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      Hello Danilo, the dimensions, once assembled with the dolly kit is 44.25″ x 33.4″ x 32″ (LxWxH). This model does not come assembled with the dolly kit. You can find the dolly kit installation instructions and other downloads in the download section. Let us know if you have any other questions, we will be happy to help!

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  9. Josie Krugerud

    Josie Krugerud

    Hello Mickey,
    The HPS12000HE is the largest tri-fuel we manufacture. It produces 10,800 running watts, 45 Amps at 240V. For more output in a portable, you would have to go to a gasoline only unit. You can contact our sales team to discuss your options at 507-357-6821.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Rod Mayberry

      I have one that I’ve been trying to get it to run on natural gas but so far no luck. I need help troubleshooting the engine to get it started.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Rod, you can use our “Dealer Locator” to find your closest Winco Service Dealer to help you, or you can call our Technical Support @ 507-357-8334.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Mike Johnston

      I have a Home NG outlet for my Weber gas grill using the standard attachment from the grill to connect to NG. Will that NG outlet be okay for this generator?

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Mike, generally no, because of the BTU requirements of the generator set. Please consult a licensed gas installer for the proper installation of the vapor fuel supply.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  10. Question

    Joe

    Does the tri fuel model HPS1200HE-03/A come with a quick connect for NG hose?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Joe,
      We currently do not have a quick connect for vapor fuel hoses. Here is a link for a company that provides them: https://tejassmokers.com/

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  11. Question

    Denis Jennisch

    What size NG gas line is needed to run this generator? 1/2 or 3/4?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dennis Doyle

      Thank you , I will do that.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      Hello Denis, this depends on the length of the fuel line. Less than 25 feet requires 3/4 inch black pipe. 25-100 feet requires 1 inch black pipe. We do not recommend going over 100 feet. There is more information in the manual, which you can find in the download table. You can also call our Service Department if you have more questions – 507-357-6831.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  12. Question

    Tim

    I’m in Ca. Do you make a 12000 watt unit/ tri fuel or gas /propane that meets the CARB requirements?

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Josie Krugerud

      Josie Krugerud

      Hello, unfortunately we do not. We do manufacture a WL12000HE that is CARB approved, but it only runs on gasoline.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  13. Matt Wetty

    This Generator is AWESOME

    Matt Wetty

    I purchased this generator through a licensed power dealer north of NYC who knew what they were doing. They communicated with my plumber and electrician to make sure the setup was safe and correct and would be easy for a typical homeowner like myself to wheel out, connect (natural gas) and turn on. We did not get a full home standby because of zoning headaches in our neighborhood. This was the best option we could find on the market. With Hurricane Ida blasting through our neighborhoood last week, power went down. Wheeled this puppy out, hooked everything up and with one turn of the key on this Honda engine it started up immediately. ( I do keep a trickle charger hooked up to the battery at all times so the battery is good to go ). We have a large home with all of the gadgets and lights and appliances. This basically pulls the whole house. We have 3 zones of AC. A 5 ton, a 4 ton and a 3 ton. It is able to run the whole house and I am able to turn on either the 3 or 4 ton AC without the generator choking off. I tried a second AC and it couldn’t quite handle it, but in a total outage situation when the whole neighborhood is dark stressing about AC seems excessive. Cool beer in the fridge, internet and lights and my family was pretty happy. This generator has a lot of power and ran for several days without any issues. It is a bit noisy, but for a 12K watt there is just going to be some noise and the Honda engine is well built and helps. If you buy this unit, spec if out with your plumber and electrician to make sure all of the connections are done correctly and safely. I highly recommend buying through a dealer that can set this unit up, test it and make sure it is ready to go. No more gas cans..! NG or Propane is so much easier.

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
