DE4040F4 Gen 4

MSRP $31,400.00

Loading...

Voltage* Required

Clear selection
Subtotal:

Controller* Required

Clear selection
Subtotal:

Generator End* Required

Clear selection
Subtotal:

Compressor* Required

Clear selection
Subtotal:

Fuel Tank* Optional

Clear selection
Subtotal:

Start Battery* Optional

Clear selection
Subtotal:

Battery Charger* Optional

Clear selection
Subtotal:

Engine Coolant Heater* Optional

Clear selection
Subtotal:

Remote E-Stop* Optional

Clear selection
Subtotal:

Engine Maintenance Kit* Optional

Clear selection
Subtotal:

Compressor Maintenance Kit* Optional

Clear selection
Subtotal:
Product Base Price:
$31,400.00
Add-Ons Option Total:
Component Options Total:
Order Total:

The add to cart button is disabled because the following component is not selected:

SKU: DE4040F4-XX4 Categories: , , ,

Product Features

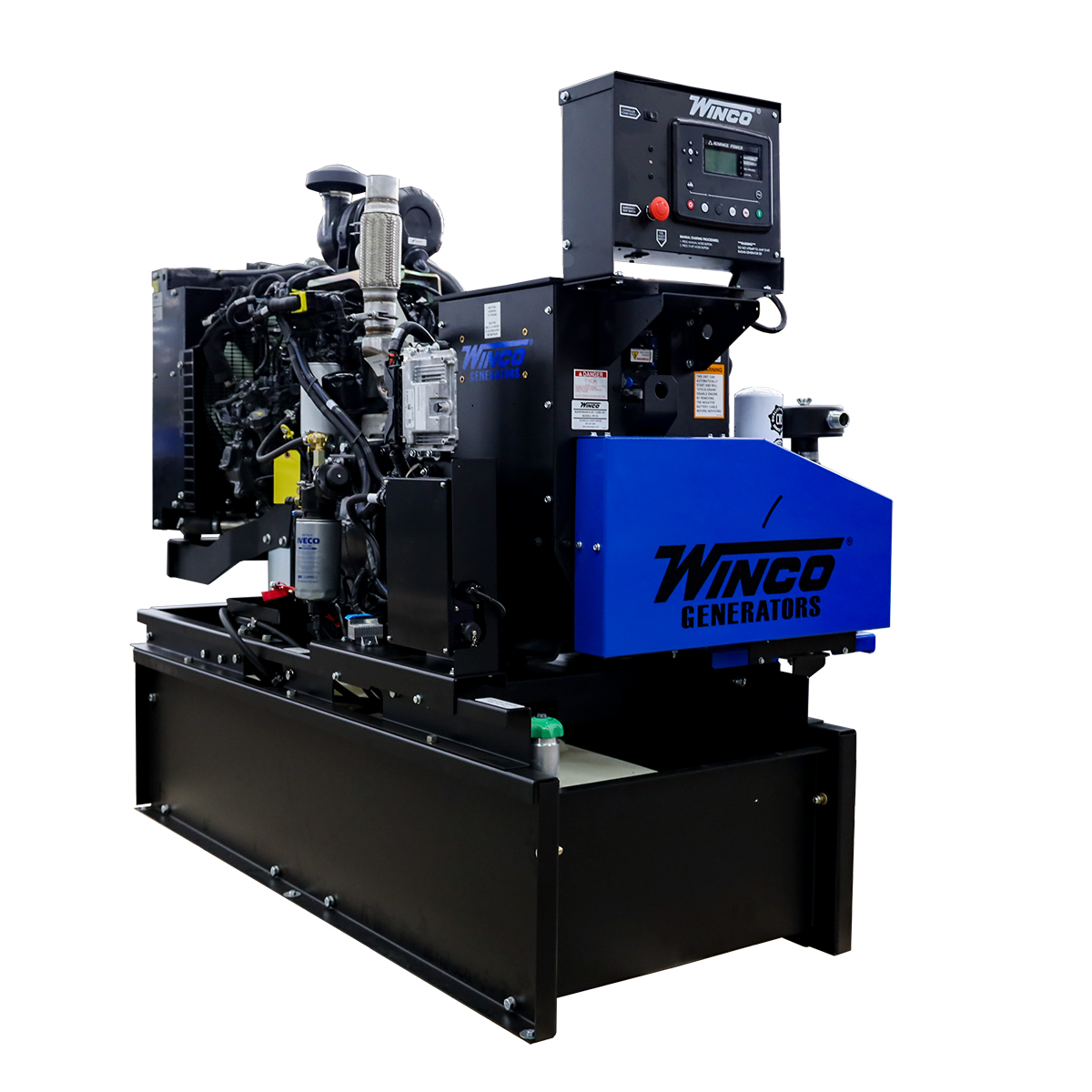

DE4040F4

Our DE4040 has great features, such as a standard DSE 7310 MKII Controller, the FPT F5 series engine, service access on one side, Electronic Common Rail, and radiator ducting, to name a few.


3.4L Engine
     We all know the saying that “there is no replacement
     for displacement.” A lot of engine manufacturers are
     pushing really small engines into this range for TIER IV
     final. We think a little more engine is key for long life
     and quick responses to load changes. There isnt Urea or
     a need to shutdown for regens with this FPT F5 series
     engine with DOC-PMCAT.
Cummins Industrial Generator End
     With automatic voltage regulation.
Deep Sea 7310 MKII Controller
     Our digital controller is powerful and dynamic with a
     user-friendly interface.
Electronic Common Rail
     Excellent frequency control and load pick-up.
Fork Pockets
     Convenient fork pockets integrated into the unit,
     giving you the ability to lift from all directions
WP DataTables

Additional Information

Standby Watts

120/240 1-PH: 45,000
120/208 3-PH: 49,000
120/240 3-PH: 49,000
277/480 3-PH: 49,000
346/600 3-PH: 49,000

Prime Watts

120/240 1-PH: 40,500
120/208 3-PH: 44,100
120/240 3-PH: 44,100
277/480 3-PH: 44,100
346/480 3-PH: 44,100

Voltage Output

120/208 Volt Three Phase, 120/240 Volt Single Phase, 120/240 Volt Three Phase, 277/480 Volt Three Phase, 346/600 Volt Three Phase

Standby Amps

120/240 1-PH: 187
120/208 3-PH: 170
120/240 3-PH: 147
277/480 3-PH: 73
346/600 3-PH: 59

Prime Amps

120/240 1-PH: 168
120/208 1-PH: 153
120/240 3-PH: 132
277/480 3-PH: 66
346/600 3-PH: 53

Voltage Regulation

AVR – AS440 +/- 1%

Engine

Brand: FPT
Model: F5 C

Emissions

EPA Prime

Dimensions

75.07" x 38.04" x 46.86"

Weight

2,000 lbs

Unit Warranty

1 year/2000 hours

Assembled In

USA
