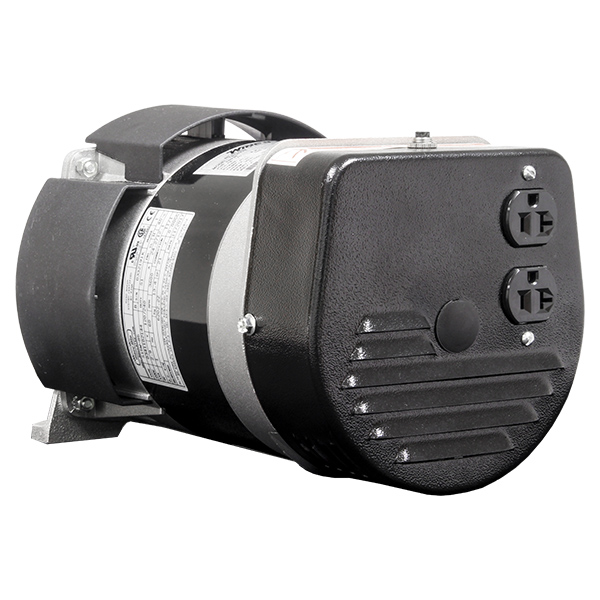

TB2400/E

MSRP $390.00

SKU: 61685-017 Categories: ,

Product Features

Water Resistance

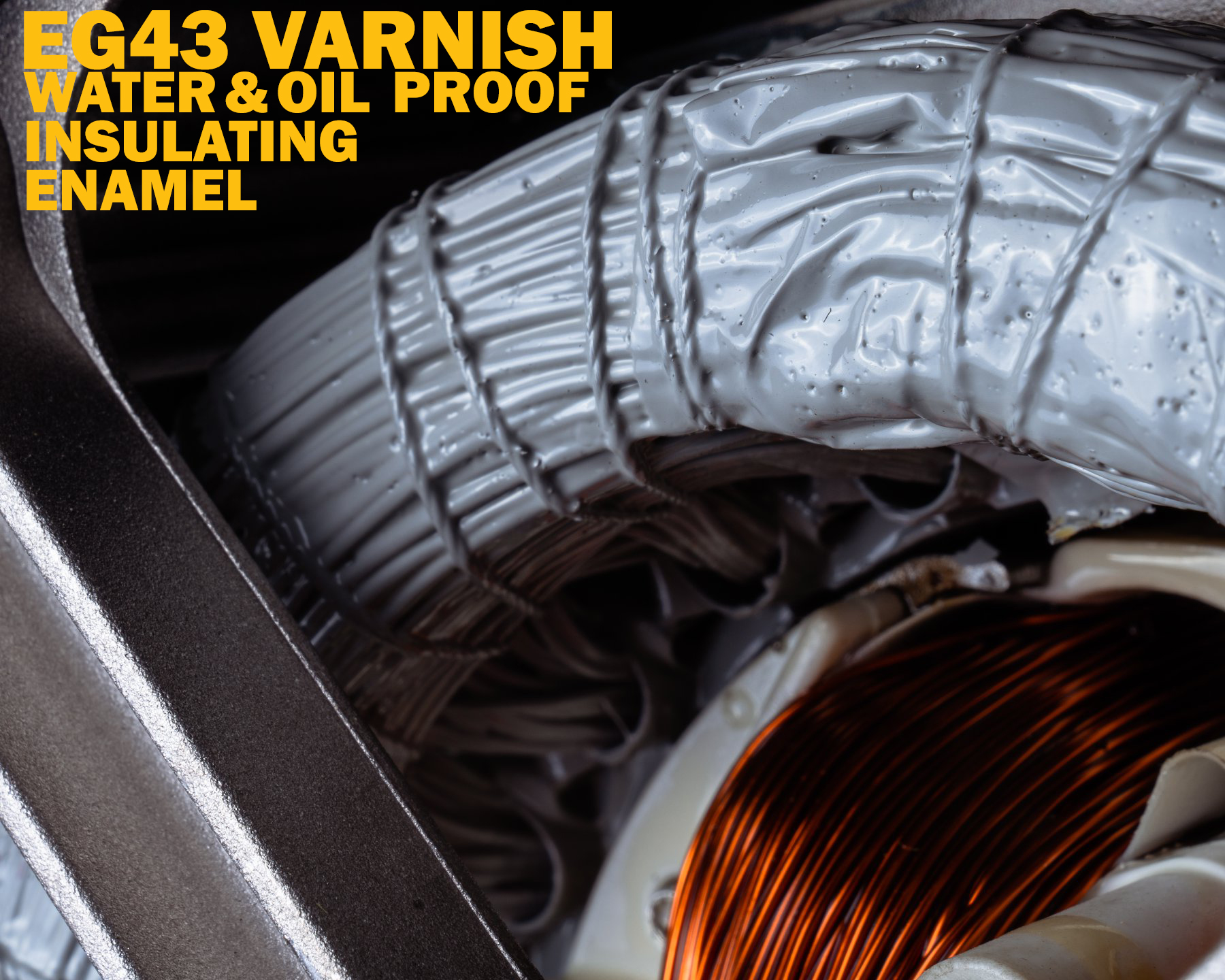

     EG43 varnish is a water and oil proof insulating enamel,
     providing moisture and chemical protection.
Insulation Protection
     IP23 covers protect from spraying water and
     objects larger than 0.5″.
TB2400 Downloads
General Information
Spec SheetOperators Manual
Drawings
Outline Drawing 3D Drawing
Generator
Spec SheetOperators Manual

Additional Information

Watts

2400

Amps

20

Voltage Output

120 Volt Single Phase

Voltage Regulation

Capacitor

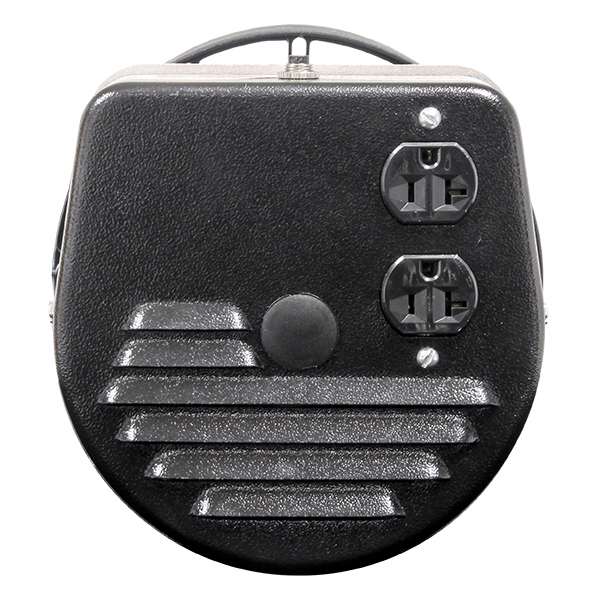

120V Receptacles

(1) NEMA 5-20 Duplex

Certification

UL1004 Listed

Water Resistance

EG43 Varnish

Insulation Protection

IP23 Covers

Dimensions

13.3" x 7.6" x 8.1"

Weight

33 lbs

Unit Warranty

1 Year

Assembled In

USA

Share your thoughts!

Let us know what you think...

What others are saying

  1. Michael Jablonski

    Difference tb2400 e & tb2400c/d?

    Michael Jablonski

    I recently replaced my tb2400 c/d withe tb2400E. Haven’t hooked up yet, waiting for timing bearing with different shaft diameter. Will I have problems? They appear to be similar/ same on paper, just shaft and physical size…

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Michael,
      There was a re-design of the product between those two models and the footprint for mounting will change. Electrically it is the equivalent, so you should not see any difference in the electrical performance of the two products.

      (0) (0)

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
