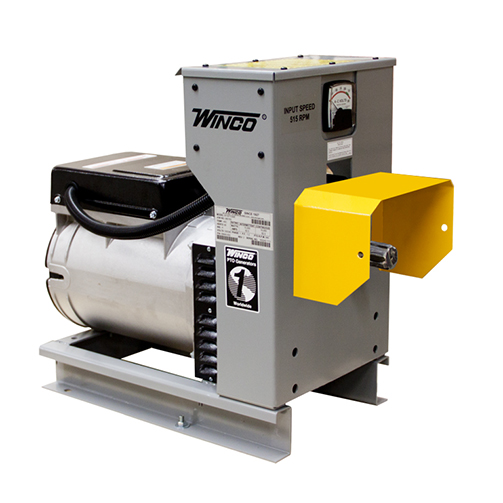

Support for Model: W15PTOS/E

Categories: ,

Share your thoughts!

Let us know what you think...

What others are saying

  1. Question

    Michael Maliga

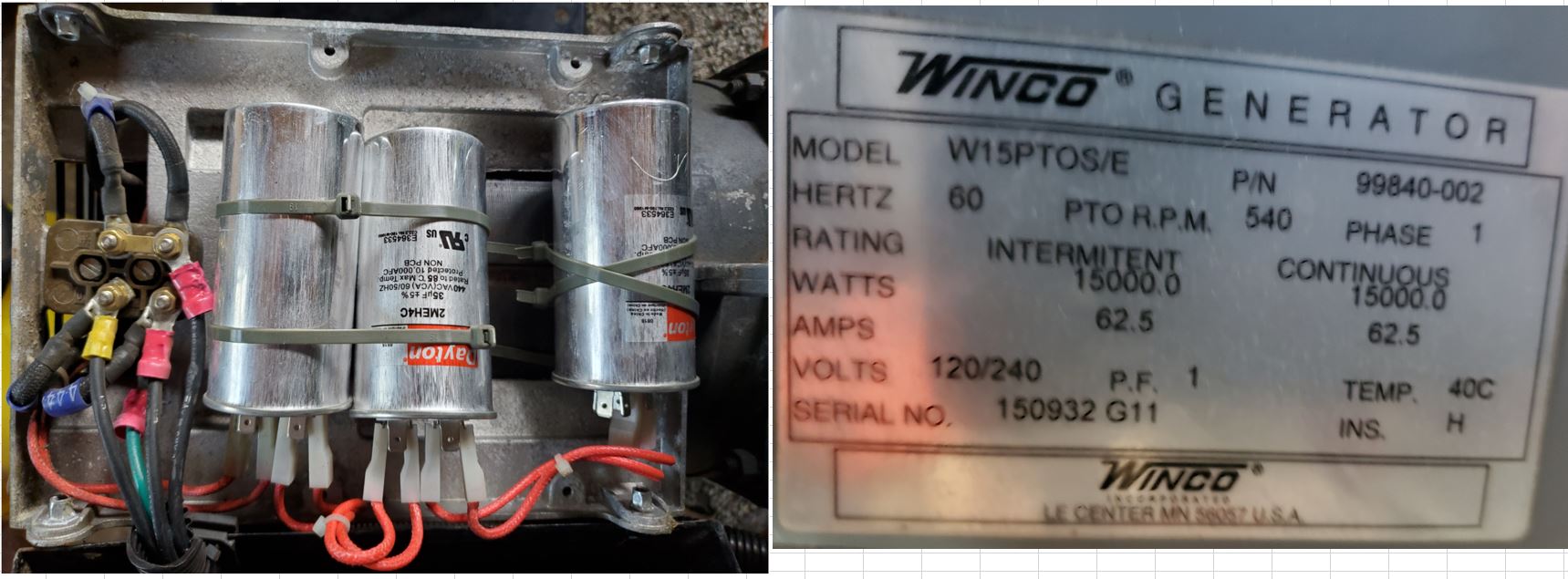

    Looking for the wiring diagram for W15PTOS/E that shows the interconnection of the capacitors. Nameplate and Capacitor wiring is in the pictures, but it seems both leads from the generator are connected to the same terminal, and the last capacitor is only connected on one side.
    I have looked through all of the informatioon on the website, and I can only find sections of the wiring. The Mecc Alte manual doesn’t seem to show any of the generator wiring.
    Can you help?
    Mike

    (0) (0)

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Mike, I emailed you a picture.

      (0) (0)
