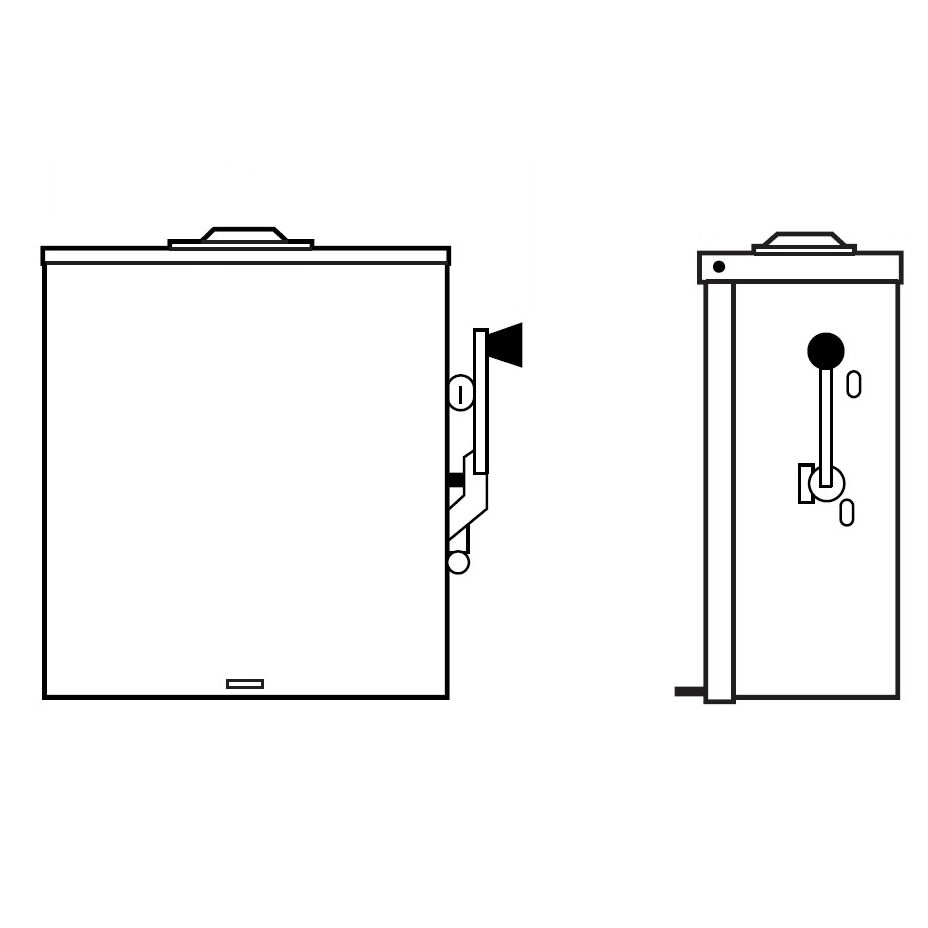

200 Amp Manual Transfer Switch 208/240V 3-PH

$1,680.00

Product Features

200 Amp
     120/208v  & 120/240v three-phase, 3-pole.
Non-Fusible
     Manually connect or disconnect the load from the source.
Double Throw Manual Switches
     Visible blades for positive indication the switch is on or off.
UL Listed
     Suitable for use as service equipment.
NEMA 3R Outdoor Enclusures
     Baked enamel for an incredibly durable finish.
Tangential Knockouts
     Eleminate the need for conduit offsets or bends.
WP DataTables

Additional Information

100 Amp Single Phase

Voltage: 240
Poles: 2
Dimensions: 30.5" x 12" x 6.93"
Weight: 36 lbs.

100 Amp Three Phase

Voltage: 208/240
Poles: 3
Dimensions: 30.5" x 12" x 10.63"
Weight: 40 lbs.

200 Amp Single Phase

Voltage: 240
Poles: 2
Dimensions: 32.5" x 24" x 10.63"
Weight: 70 lbs.

200 Amp Three Phase

Voltage: 208/240
Poles: 3
Dimensions: 32.5" x 26.25" x 10.63"
Weight: 80 lbs.
