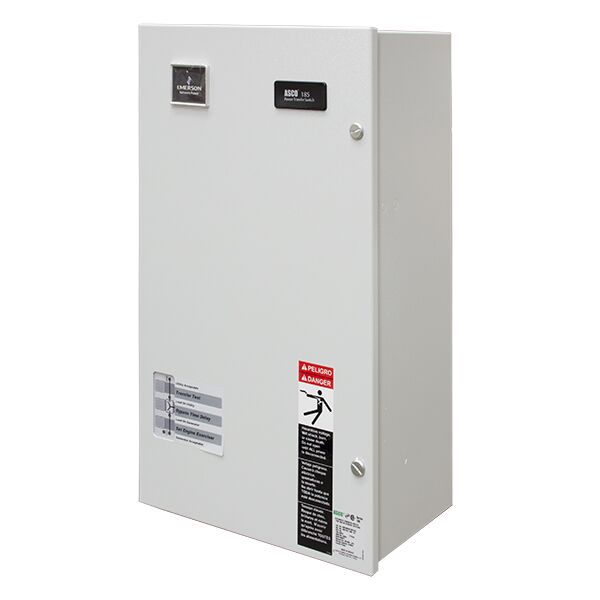

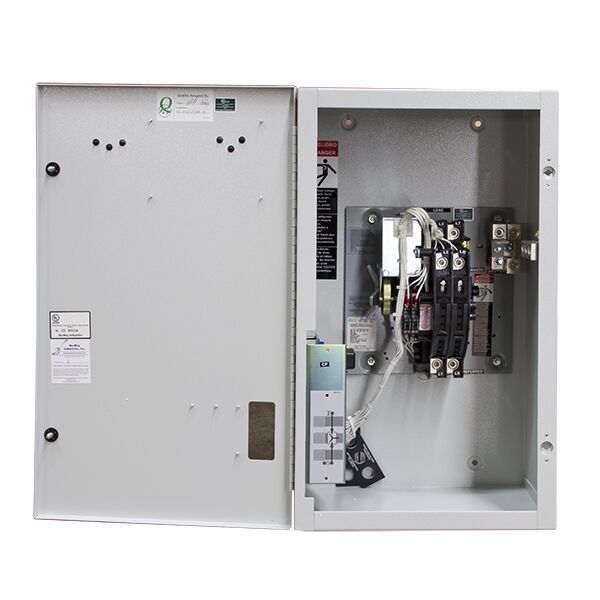

ASCO185 ATS 100 Amp

$0.00

Loading...

Configuration* Required

Clear selection
Subtotal:

Strip Heater* Optional

Clear selection
Subtotal:

14A/14B Auxiliary Contacts* Optional

Clear selection
Subtotal:
Add-Ons Option Total:
Component Options Total:
Order Total:

The add to cart button is disabled because the following component is not selected:

Product Features

Do you have installation questions? Click to read our Help Topics on Transfer Switches.


ASCO Automatic Transfer Switch Manufactured by Schneider Electric.
With an ATS, you are protected 24 hours a day, seven days a week.
When the utility power fails, the ATS automatically starts the generator set and
transfers the load once the generator has reached proper voltage and
frequency. This happens in a matter of seconds after the power failure occurs.
As soon as the utility power has been restored, the ATS will automatically switch the load
back and, after a time delay, shut down the engine generator.
UL 1008
Listed to UL 1008 standard for total system loads for automatic transfer switches.
Weekly Exerciser
          Exercises with or without load.
Withstand and Close-On Rating
Maximum of 10kA when used with circuit breakers.
WP DataTables

Additional Information

ASCO Series

185 Series

Rating

SE Rated, Non-SE Rated

Amperage

100 Amps

Voltage Output

240V

Current Limiting Fuses

200kA

Dimensions (WxDxH)

14.25" x 8.25" x 24"
