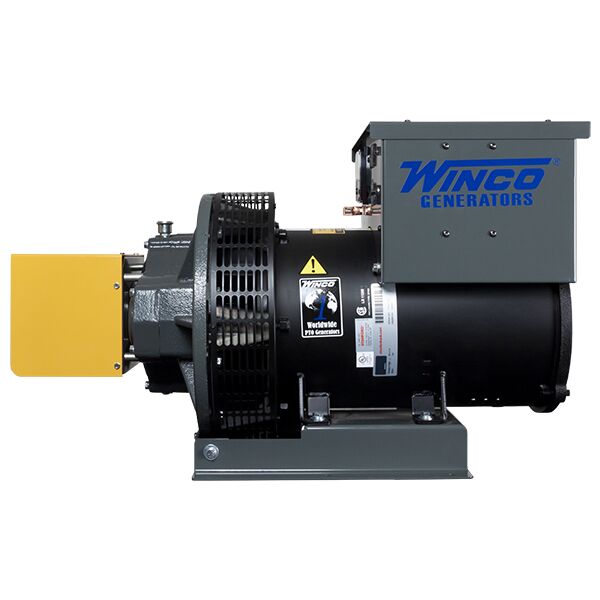

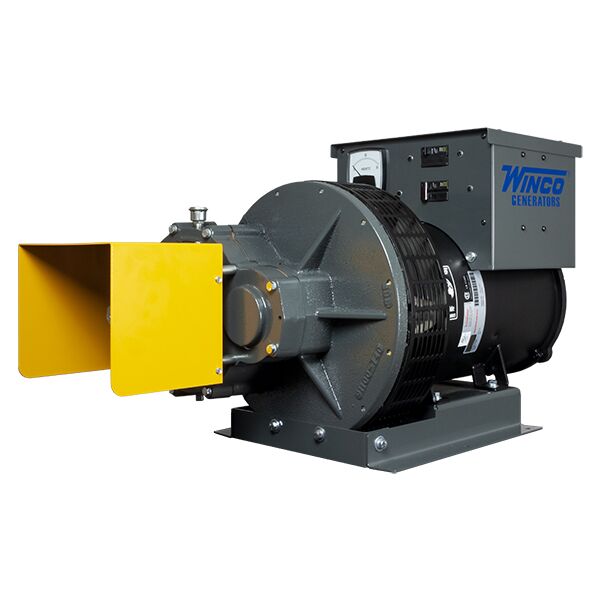

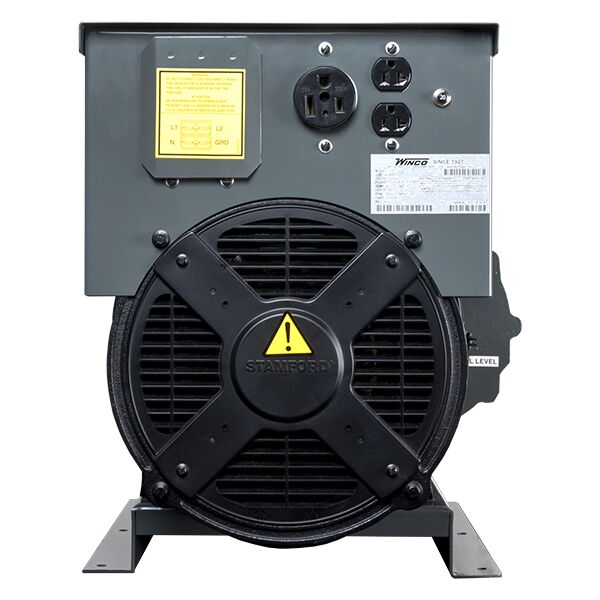

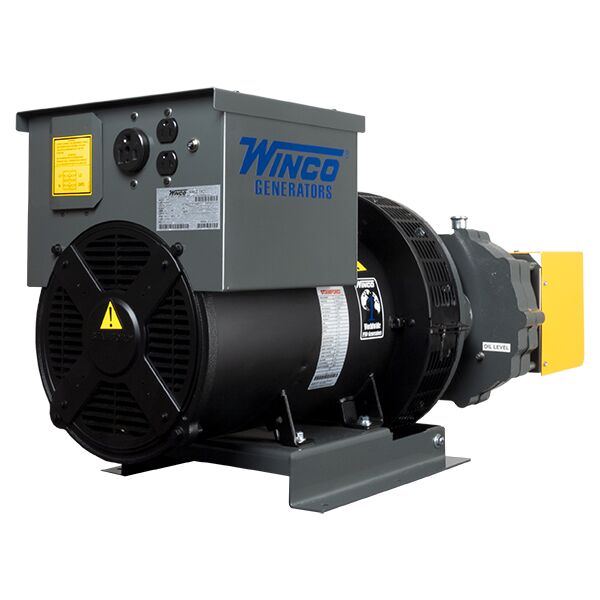

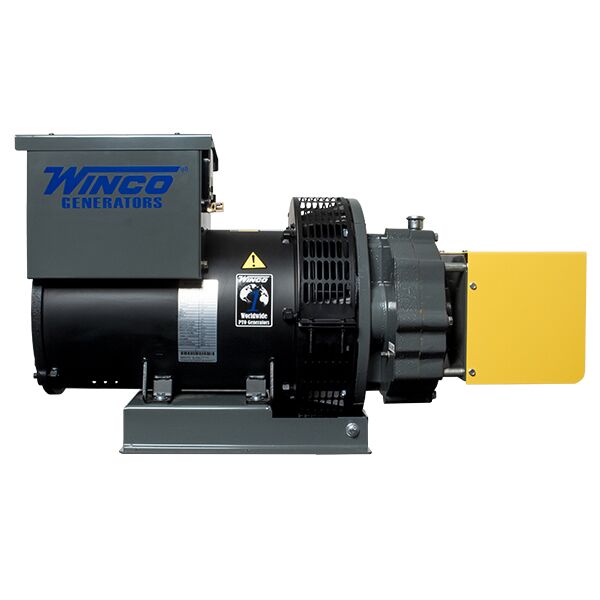

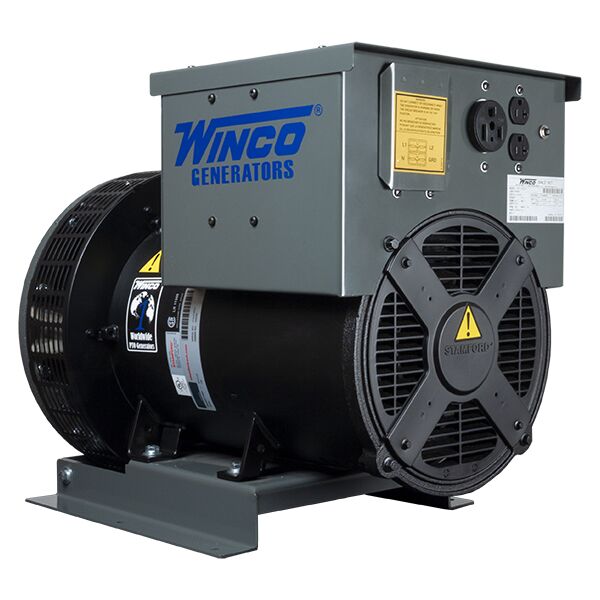

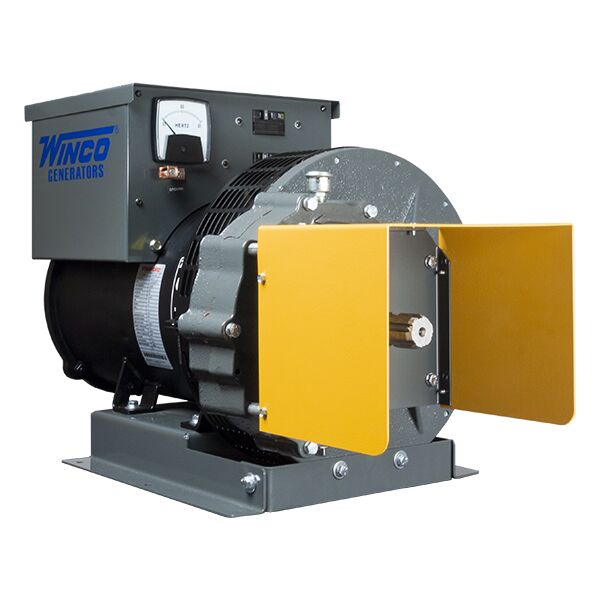

35PTO 277/480V 3-PH 1000 RPM Generator

MSRP $4,040.00

SKU: 203514-181 Categories: , ,

Product Features

Starting at 36,000 standby watts, this 35PTO is three phase
with a 1000RPM gearcase.
Rugged Design
     Our own WINCO gearcases have proven their strength
     and durability for over 60 years and will keep doing so
     into the future.
Low Harmonic Distortion
     Provides clean power for both farm and home.
Frequency Meter

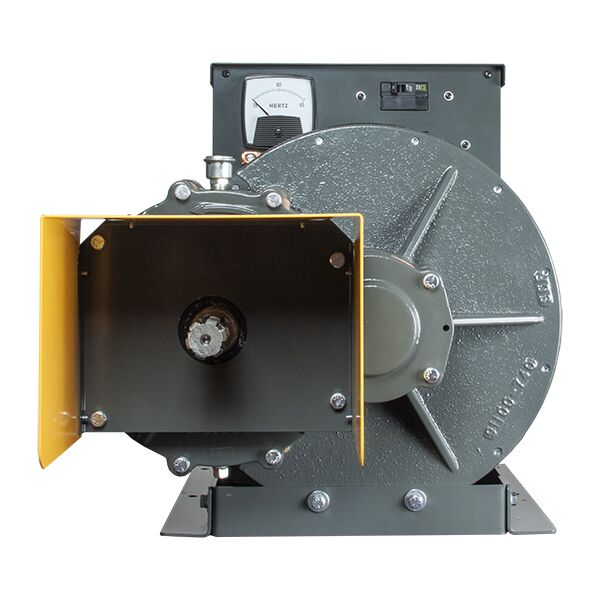

      A large 3 1/2″ frequency meter ensures the proper output.
Premium Circuit Breakers
     Providing clear and instant identification of a tripped circuit.
Protective PTO Shield
     Safety is always a priority.
5-Wire Anderson Full Power Plug Included
100% Load Tested
     You won’t find statistical sampling here. We load test every
     generator before it leaves our facility.

Additional Information

Standby Watts

36,000

Standby Amps

43 @ 1.0 PF/ 54 @ 0.8 PF

Continuous Watts

30,600

Continuous Amps

36 @ 1.0 PF/ 46 @ 0.8 PF

Voltage Output

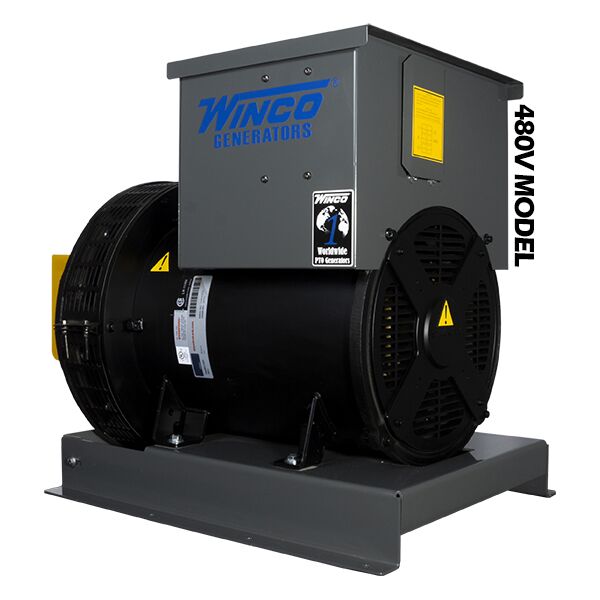

277/480 Volt Three Phase

Voltage Regulation

AVR (Automatic Voltage Regulator)

120/240 Anderson Connector

175 Amps

PTO Shaft

1 3/8" 6-spline
1000 RPM

Dimensions

37" x 21" x 24.3"

Shipping Weight

472 lbs.

Unit Warranty

3 Years

Assembled In

USA
