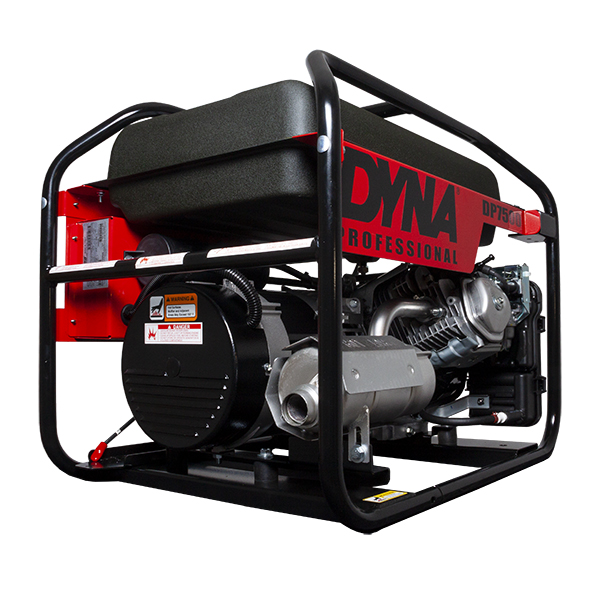

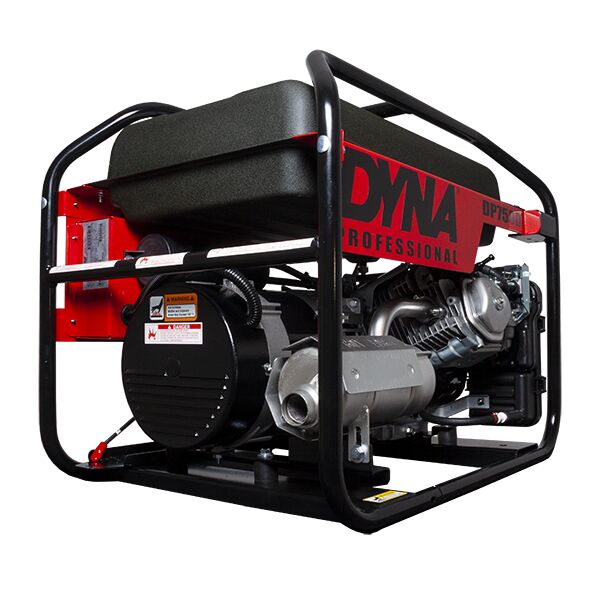

Support for Model: DP7500HE-03/A
| General Information | ||
| Spec Sheet | Operators Manual | Parts List |
| Tri-Fold Brochure | ||
| Drawings | ||
| Outline Drawing | ||
| Engine | ||
| Operators Manual | EPA Certificate | |
| Generator | ||
| Spec Sheet | Operators Manual | |
| Additional Information | ||
| Battery | Dolly Kit Installation Instructions |
Additional Information
| Starting Watts | 7500 |
|---|---|
| Running Watts | 6720 |
| Running Amps | 56/28 |
| Voltage Output | 120/240 Volt Single Phase |
| Voltage Regulation | Capacitor |

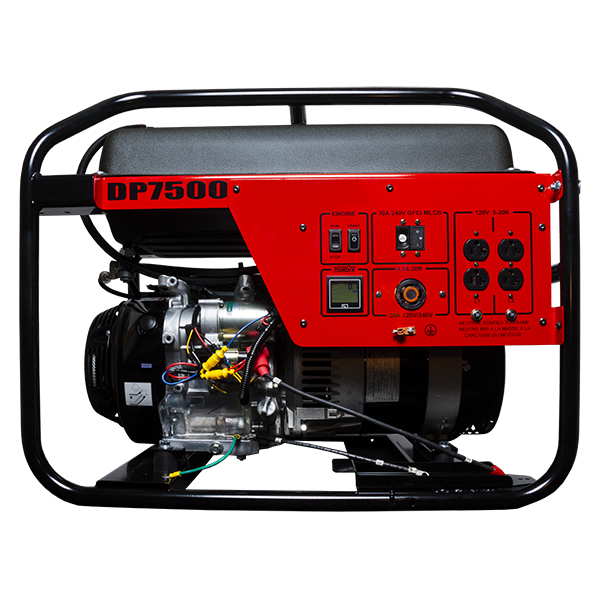

| 120V Receptacles | (2) NEMA 5-20 20A (GFCI) |
| 120/240V Receptacles | (1) NEMA L14-30 30A (GFCI) |

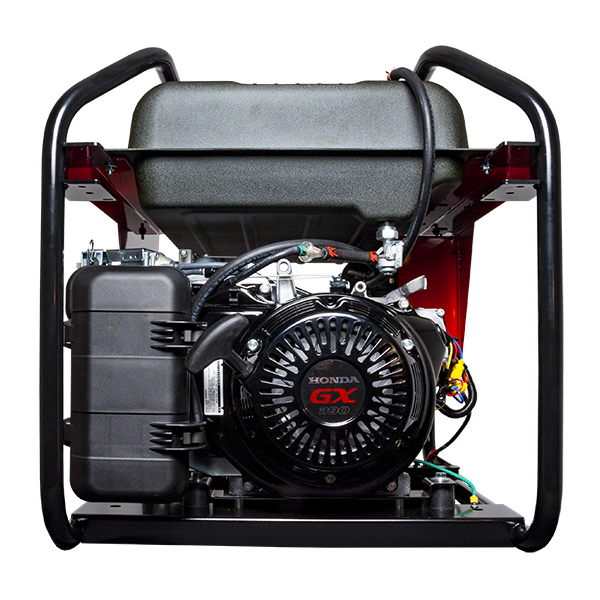

| Engine Brand | Honda |
| Fuel | Gasoline |
| Emissions | CSA, EPA Prime |
| Dimensions | 29" x 21.5" x 23.6" |
| Weight | 190 lbs. |
| Unit Warranty | 3 Years Commercial |
| Assembled In | USA |
Related products
Share your thoughts!
Let us know what you think...
What others are saying
Call us crazy, but we just want you to get the right generator. We provide, where possible and applicable, our competitors’ model that is comparable with our own. We are unafraid of our pricing or our products. So if you can’t figure out why a competitor is beating us in price, please ask. We can usually provide a few reasons. If there isn’t a comparable product, we’ll use this space to tell you why.
Question
JIm –
Can you start a 7500 watt generator with a load?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Dale Riebel –
Jim, it is not recommended to start the generator under load. It is best to start it, let it get to operating speed, then apply the load.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
how many decibels for the 7500 vs the 5000
jay t thompson –
looking at purchasing for a camper but want to know how loud they are ?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Josie Krugerud –
Hello Jay. The DP7500 has a DBA of 83.7. Unfortunately, most campsites wouldn’t allow it.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Doug Mock –
Does DP7500HE-03/A have auto idle down? see it uses a honda engine, other generators using these motors have auto idle control where idle decreases as load decreases.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Dale Riebel –
Doug, no it does not have that feature.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
