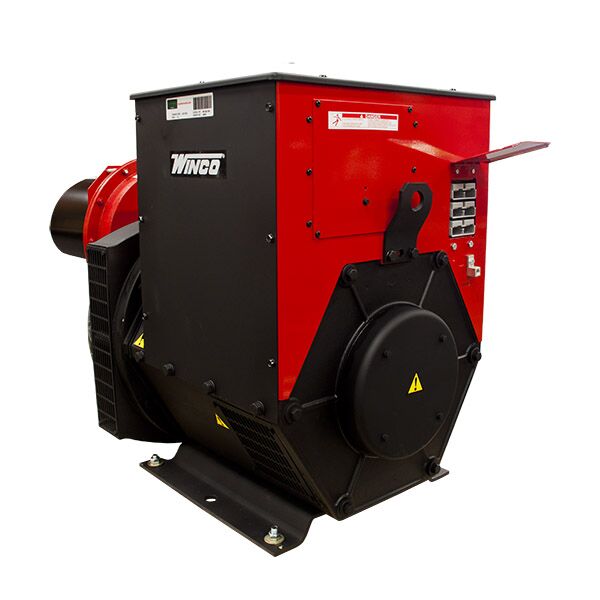

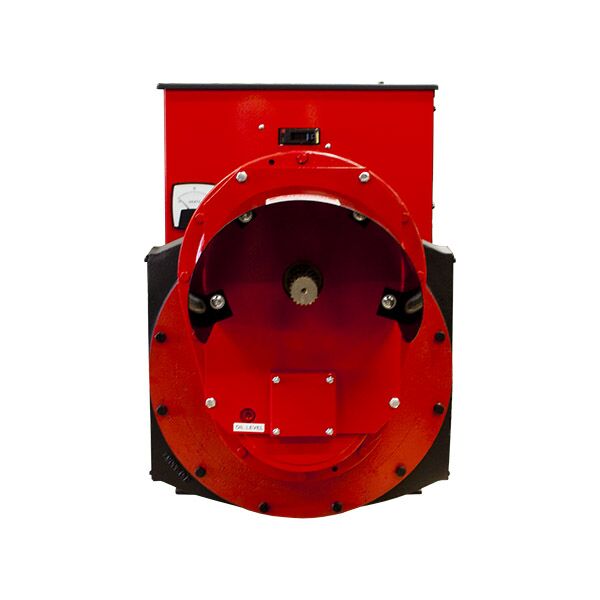

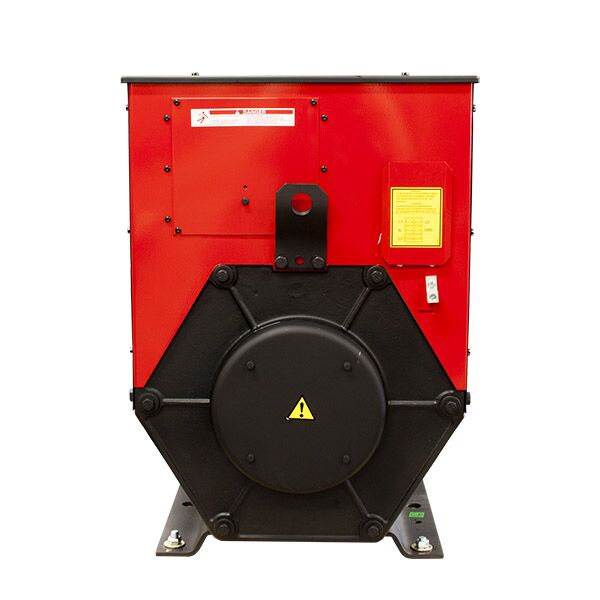

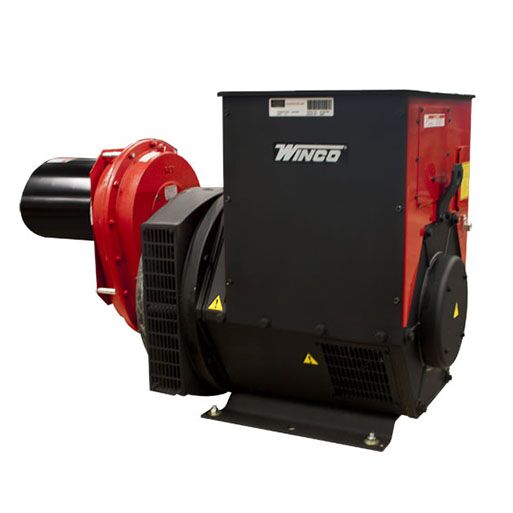

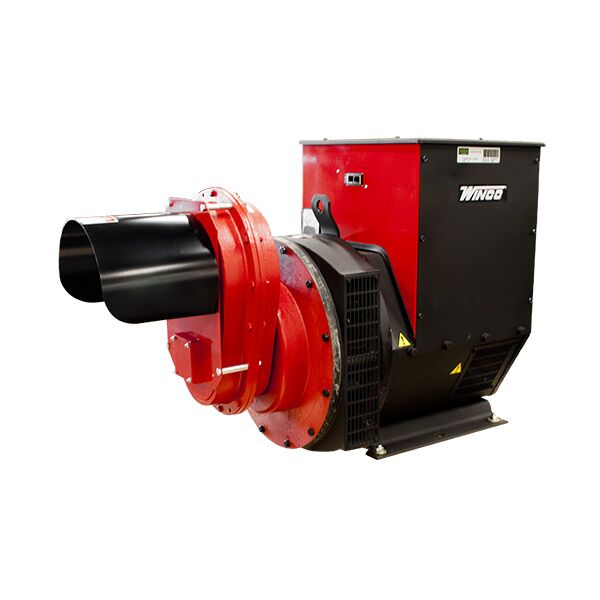

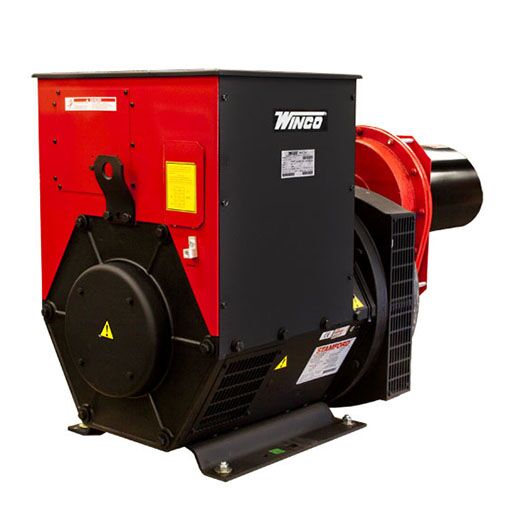

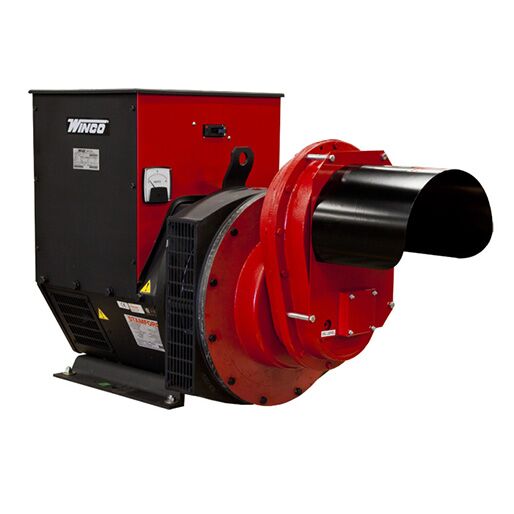

Support for Model: W100PTOS-03/F
| General Information | ||
| Spec Sheet | Operators Manual | Parts List |
| Tri-Fold | ||
| Generator | ||
| Spec Sheet | Operators Manual | Parts List |
| Additional Information | ||
| SA12310 Shaft Spec Sheet | SA12311 Shaft Spec Sheet | Trailer Instructions |
Additional Information
| Running Watts | 100000 |
|---|---|
| Running Amps | 416 |
| Voltage Output | 120/240 Volt Single Phase |
| Voltage Regulation | AVR (Automatic Voltage Regulator) |
| 120V Receptacles | (1) NEMA 5-20 20A Duplex |
| 120/240V Receptacles | 350A Anderson |
| 240V Receptacles | (1) NEMA 6-50 50A |
| Required HP at Tractor PTO | 200 |
| PTO Input Speed | 1000 RPM |
| Dimensions | 46.9" x 27" x 30.4" |
| Weight | 1175 lbs. |
| Unit Warranty | 3 Years |
| Assembled In | USA |
