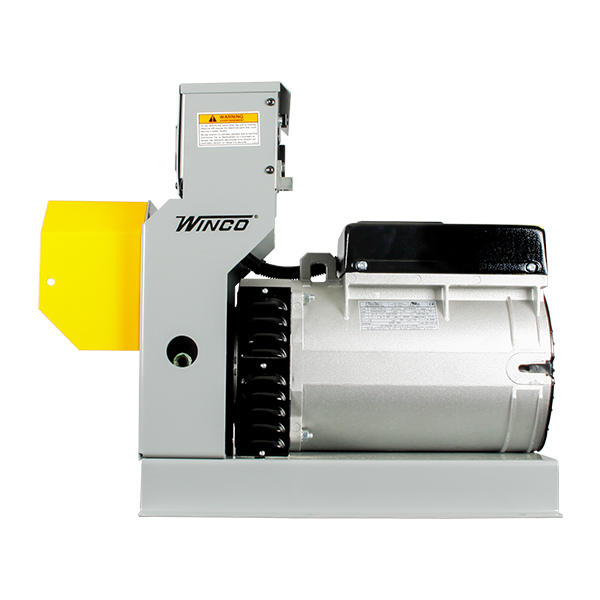

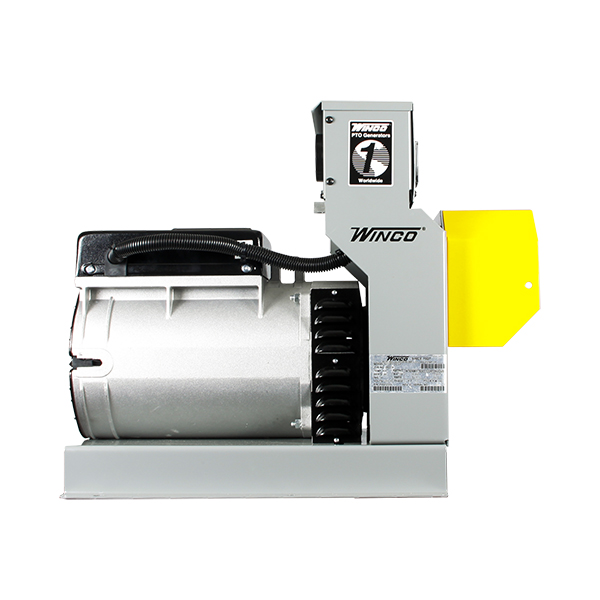

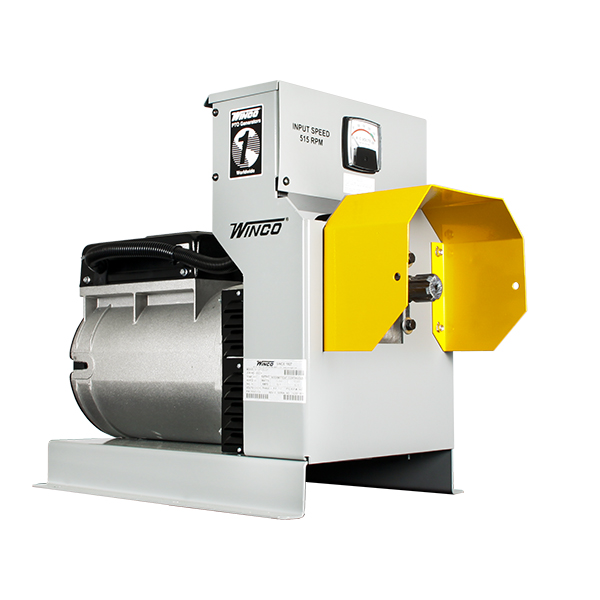

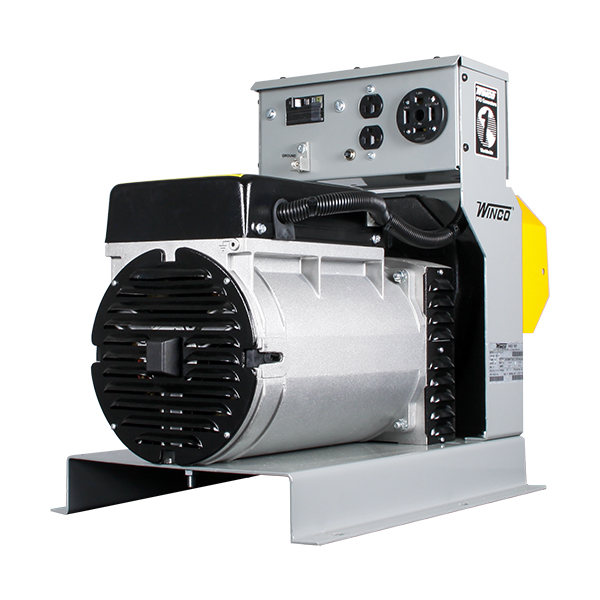

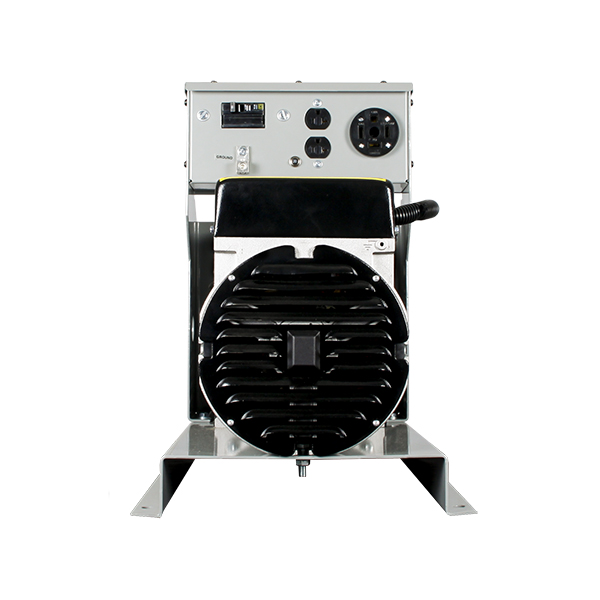

Support for Model: W15PTO 120/240 1-PH 515 RPM

SKU: 99840-004 Categories: ,

Product Features

Starting at 15,000 standby watts, this W15PTOS is single phase, 120/240V with a 515RPM gearcase.

Low Harmonic Distortion
     Provides clean power for both farm and home.
Compact Design
     Easily move and store your PTO generator.
Cast Iron Gearcase with Helical Gears
     A 515 RPM operating speed makes for effective operation.

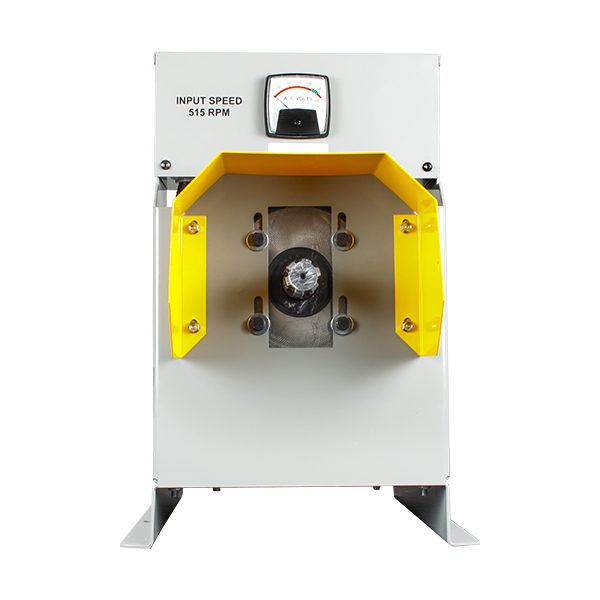

Voltmeter
     A large 3″ voltmeter ensures the proper output.
Premium Circuit Breakers
     Providing clear and instant identification of a tripped circuit.

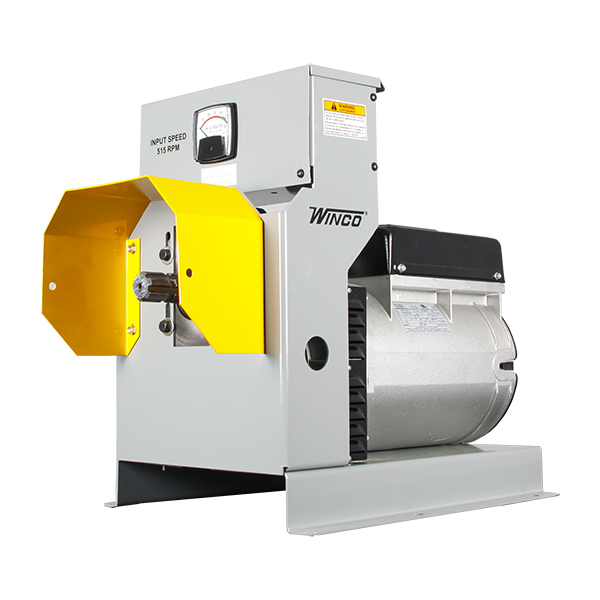

Protective PTO Shield
     Safety is always a priority.
60 Amp NEMA 14-60 Full Power Plug Included
     You supply the #4/4 conductor cord, we provide the plug.
100% Load Tested
     We load test every generator before it leaves our facility.

Additional Information

Running Watts

15000

Running Amps

62.5

Voltage Regulation

Capacitor

Voltage Output

120/240 Volt Single Phase

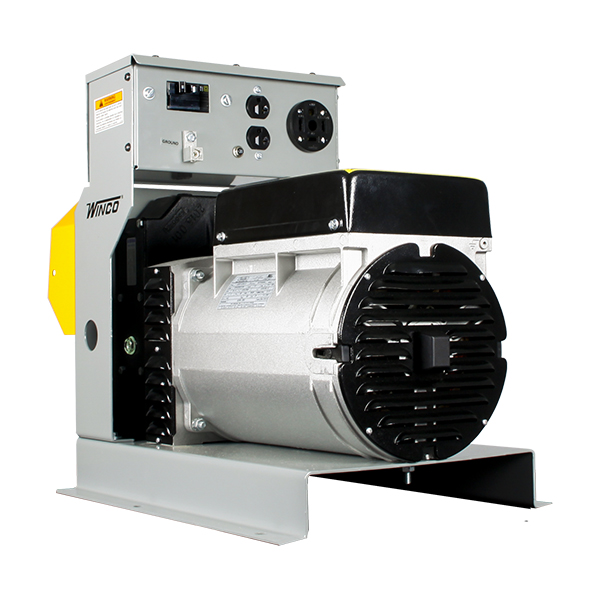

120V Receptacles

(1) NEMA 5-20 20A Duplex

120/240V Receptacles

(1) NEMA 14-60 60A

Required HP at Tractor PTO

30

PTO Input Speed

515 RPM

Dimensions

25.1" x 14.5" x 20.6"

Weight

232 lbs.

Unit Warranty

1 Year

Assembled In

USA

Share your thoughts!

Let us know what you think...

What others are saying

  1. Question

    Daniel Sobstyl

    Hello, I would like to use this product to power my home. I have a Kabota tractor 44 hp 540 pto. Will I be able to plug into my breaker box 200amp. I would be using water heater, well pump, refrigerator, two freezers and other minor essentials.
    Thank you in advance for your response. Danny.

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  2. Question

    Sam

    Hello I would like more info on this gen. I will be using it on my kubota 3901 but I was wondering is there a way to making it a floating neutral?

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  3. Question

    Sam

    Hello I would like more info on this gen.I was wondering is there a way to making it a floating neutral? Or do I have to go with a transfer switch that breakes the neutral

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

  4. Question

    Roy D. Matteson

    Can this model generator be supplied with an “Anderson 4 plug” connector?

    Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

    Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

    • Dale Riebel

      Dale Riebel

      Roy, it could be modified to put that on it. You would need to do some sheet-metal work and re-wiring. Please call our Parts Department @ 507-357-8332.

      Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal

      Something wrong with this post? Thanks for letting us know. If you can point us in the right direction...

×
